1 m³/h Double Pass Reverse Osmosis (RO)



Pure Water Treatment System



Stable Production Capacity: 1.0 m³/h

Adjustable Range: 0.5–1.2 m³/h



1. Applicable Raw Water Types



Applicable Water Sources:

• Municipal tap water
• Qualified groundwater
• Well water
•

Raw Water TDS:Recommended: ≤1000 mg/L               Standard operating condition: ≤500 mg/L

Feed Water Temperature:5–35℃（Recommended: 15–25℃）

Feed Water Pressure:0.2–0.4 MPa

Feed Water Quality Requirements:Turbidity: ≤1 NTU               Residual chlorine: ≤0.1 mg/L



2. Product Water Standards & Quality Parameters



Single Pass RO Salt Rejection Rate: ≥98%

Double Pass RO Overall Salt Rejection Rate: ≥99.5%

Product Water Conductivity:1–5 μS/cm (at 25℃)

Product Water TDS:≤5 mg/L

Microorganism Removal Rate:≥99%

Removal Rate of Particles, Colloids, and Organic Matter:≥99%



Applicable Standards & Applications:

The produced water meets the requirements for:

• Bottled / barreled purified water production
• Food processing process water
• Basic purified water supply for pharmaceutical applications
• Electronic component cleaning water
• Boiler feed water
• Laboratory pure water applications

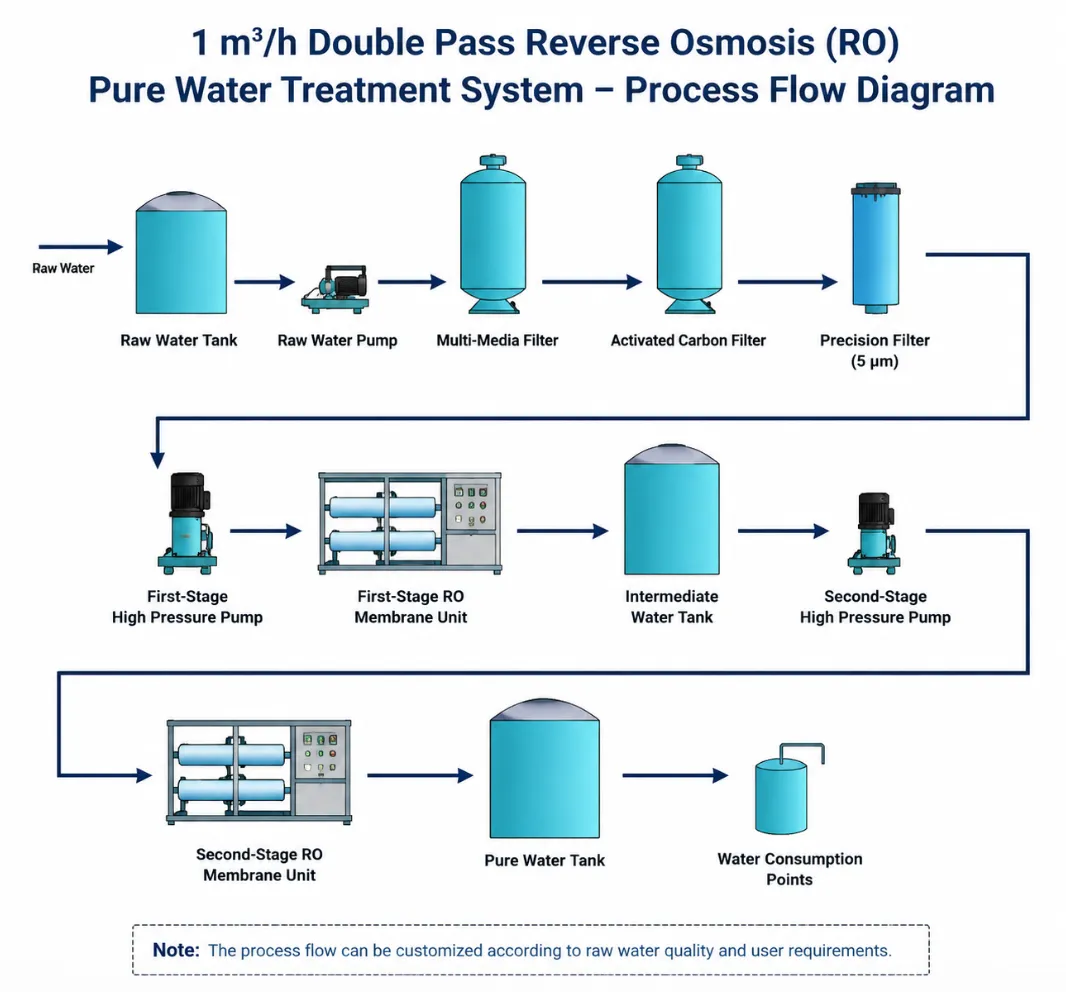

3. Typical Process Flow







Core Advantages:

• Two-stage reverse osmosis provides deep desalination performance
• Stable water quality output
• Low system failure rate
• Easy operation and maintenance



4. Optional Configurations



• ¤Fully automatic / semi-automatic control system (PLC + touch screen)
•
• ¤Online conductivity meter for raw water and pure water
•
• ¤Online pH monitoring system
•
• ¤UV sterilization / ozone sterilization system
•
• ¤Water softening system
•
• ¤Antiscalant / reducing agent dosing system
•
• ¤Sterile pure water tank
•
• ¤Variable frequency water supply system
•
• ¤Remote monitoring and data recording
•
• ¤Abnormal alarm system
•
• ¤Complete 304 stainless steel frame and piping system



5. Technical Specification Table





6. Applicable Industries



Food & Beverage Industry

• Purified drinking water production
• Beverage manufacturing
• Wine production
• Dairy processing
• Food ingredient water



Pharmaceutical & Medical Industry

• Pharmaceutical purified water
• Medical equipment cleaning
• Laboratory water supply



Electronics & Power Industry

• Electronic component cleaning
• PCB cleaning
• Small-scale boiler feed water



Chemical & Daily Chemical Industry

• Cosmetics production
• Detergent manufacturing
• Coating and chemical formulation water



Drinking Water Projects

• Bottled water plants
• School drinking water systems
• Commercial water purification projects



Agriculture & Aquaculture

• Sterile irrigation water
• Aquaculture water purification



Other Applications

• Electroplating industry
• Surface coating industry
• Water recycling projects
• Other industrial pure water requirements



7. Frequently Asked Questions (FAQ)



Q1: What are the advantages of double-pass RO compared with single-pass RO?



A double-pass RO system performs a second desalination process after the first RO stage, providing higher water purity, better stability, and is suitable for industries requiring higher water quality standards.



Q2: Can this system treat well water or groundwater?

Yes, it can. For well water or groundwater applications, it is recommended to install a water softening system or chemical dosing system to protect the RO membranes and extend their service life.



Q3: Does the equipment require a dedicated operator?

No. The system can operate automatically and is equipped with automatic protection functions such as low water level protection, low pressure protection, and high pressure protection. Daily operation only requires regular inspection and filter replacement.



Q4: How often should the filters and RO membranes be replaced?



• Pretreatment cartridge filters: normally replaced every 3–6 months
• RO membranes: service life is typically 2–3 years, depending on raw water quality and maintenance conditions.



Q5: Can the system be customized for other capacities?

Yes. We provide customized solutions from 0.25–5 m³/h, with optional modules such as EDI, sterilization systems, variable frequency water supply systems, and other functional upgrades.



Q6: What are the power consumption and water recovery rates?

The power consumption of the 1 m³/h model is approximately 2.2 kW. The system recovery rate is 65–75%, providing an energy-efficient and water-saving solution.
