250L/H Containerized Reverse Osmosis Water Treatment System
The 250L/H containerized reverse osmosis water treatment system is a compact, mobile solution for small-scale water purification. Pretreatment, RO membranes, pumps, controls and pipelines are integrated inside a protective enclosure for fast transportation and installation.
With a rated output of 250 liters per hour, this mobile RO water treatment plant is suitable for remote villages, construction camps, emergency water supply and other locations without permanent treatment facilities.
The 250L/H containerized reverse osmosis water treatment system is a compact, mobile solution for small-scale water purification. Pretreatment, RO membranes, pumps, controls and pipelines are integrated inside a protective enclosure for fast transportation and installation.
With a rated output of 250 liters per hour, this mobile RO water treatment plant is suitable for remote villages, construction camps, emergency water supply and other locations without permanent treatment facilities.
Next: No more data
Share to
Product Description
Product Specifications
| Item | Typical Specification |
|---|---|
| Product-water capacity | 250 L/h (0.25 m³/h) |
| Operating range | 200–300 L/h |
| Treatment process | Pretreatment + single-pass RO |
| Typical salt rejection | 95%–97% |
| Recovery rate | Customized according to feed water |
| Control mode | Automatic operation |
| Power supply | 220V/380V, 50/60Hz customizable |
| Structure | Containerized or enclosed mobile unit |
| Installation | Connect water, drainage and electricity |
Actual performance depends on raw-water TDS, temperature, membrane selection and system operating conditions.
Applicable Raw Water
This small containerized RO system for remote water supply can be configured to treat:
♦Borehole and well water
♦Groundwater
♦Municipal tap water
♦River and surface water with enhanced pretreatment
♦Low-to-moderate-TDS brackish water
| Water Problem | Treatment Solution |
|---|---|
| Sediment and turbidity | Multimedia filtration |
| Odor and organic matter | Activated carbon filtration |
| High hardness | Softener or antiscalant dosing |
| Iron and manganese | Optional removal filter |
| Dissolved salts | Reverse osmosis membranes |
| Microorganisms | Optional UV or ozone disinfection |
A raw-water analysis is required to determine the correct pretreatment, membrane type and operating pressure.
Treatment Process

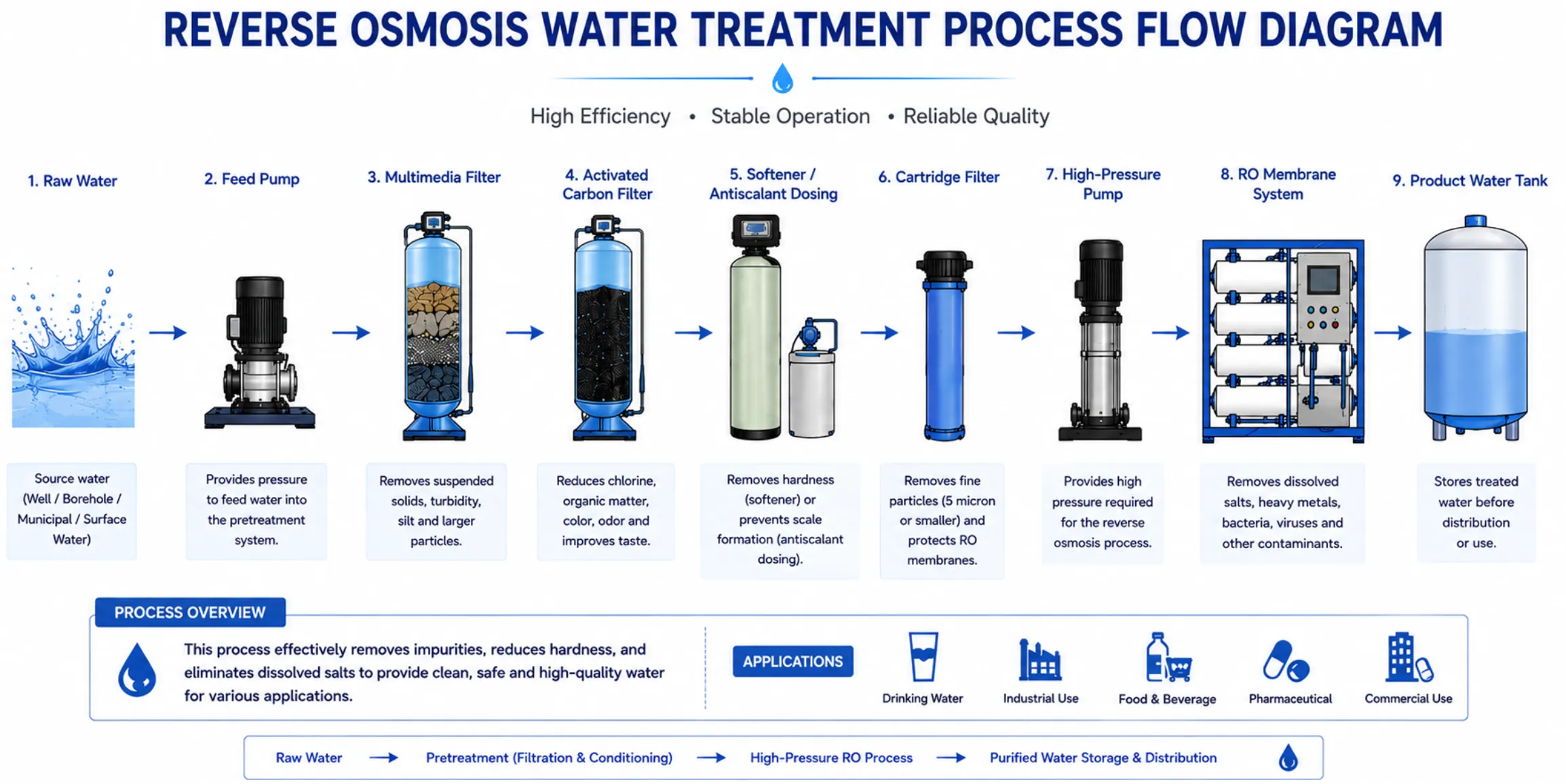

Raw Water → Feed Pump → Multimedia Filter → Activated Carbon Filter → Softener/Antiscalant Dosing → Cartridge Filter → High-Pressure Pump → RO Membrane System → Product Water Tank
All major treatment units can be installed inside the enclosure, reducing on-site assembly work. The customer normally needs to prepare a level foundation, feed-water connection, product-water storage, drainage and electricity.
Main Advantages
♦Compact integrated structure
♦Easy transportation and relocation
♦Fast on-site commissioning
♦Automatic water production and flushing
♦Protection from rain, dust and sunlight
♦Customizable for different water sources
♦Simple daily operation
♦Suitable for temporary and remote projects
Optional Configurations
♦UV sterilizer or ozone disinfection
♦Iron and manganese removal
♦Water softener
♦Online TDS and conductivity monitoring
♦PLC control and fault alarm
♦Double-pass RO for lower conductivity
♦Thermal insulation and ventilation
♦Heating or air conditioning
♦Anti-corrosion container coating
♦Solar-compatible power configuration
♦Product-water tank and distribution pump
Typical Applications
The 250 liters per hour mobile RO plant is suitable for:
→Remote village water supply
→Construction and exploration camps
→Emergency water-treatment projects
→Rural schools and clinics
→Small island facilities
→Field offices and temporary bases
→Mobile domestic water purification
→Small-scale industrial cleaning
Example Applications
Remote Village Borehole-Water Treatment
The system can treat borehole water containing sediment, hardness and dissolved salts, providing a more reliable source of purified water without constructing a permanent treatment building.
Construction-Camp Water Supply
A compact portable reverse osmosis system for construction camps can be transported with the project and connected to local water, power and drainage systems.
Emergency Water Purification
The enclosed mobile unit can be deployed to temporary service locations. Raw-water testing and suitable pretreatment remain necessary before operation.
Remote Island Water Supply
The system can treat suitable groundwater or brackish water when configured with the correct RO membranes. Seawater requires a dedicated high-pressure SWRO system and cannot use the standard configuration.
Frequently Asked Questions
What are the advantages of a containerized RO system?
It protects the equipment, reduces on-site assembly and makes transportation or relocation easier. Some foundation and utility preparation may still be required.
Can the system operate outdoors?
Yes. Rain protection, thermal insulation, ventilation, heating or cooling can be added according to the local climate.
Can the treated water be used for drinking?
The system can be designed with suitable disinfection and post-treatment. Final drinking-water compliance must be confirmed through local chemical and microbiological testing.
Can it treat brackish water?
Yes, if the feed-water salinity falls within the selected membrane and pump design. A complete water analysis is required before confirming the configuration.
Is installation complicated?
No. The main equipment is preassembled and factory-tested. On-site work normally includes positioning and connecting feed water, product water, drainage and electricity.
Information Required for a Quotation
Please provide:
- Raw-water source and water-analysis report
- TDS, hardness, turbidity, pH, iron and manganese levels
- Intended use of the treated water
- Required daily water volume and operating hours
- Local voltage and frequency
- Site temperature and installation conditions
- Delivery destination and optional configuration requirements
Zhongnuo provides customized 250L/H containerized RO water treatment systems based on the customer’s water quality, application and installation environment.
Product Specifications
| Item | Typical Specification |
|---|---|
| Product-water capacity | 250 L/h (0.25 m³/h) |
| Operating range | 200–300 L/h |
| Treatment process | Pretreatment + single-pass RO |
| Typical salt rejection | 95%–97% |
| Recovery rate | Customized according to feed water |
| Control mode | Automatic operation |
| Power supply | 220V/380V, 50/60Hz customizable |
| Structure | Containerized or enclosed mobile unit |
| Installation | Connect water, drainage and electricity |
Actual performance depends on raw-water TDS, temperature, membrane selection and system operating conditions.
Applicable Raw Water
This small containerized RO system for remote water supply can be configured to treat:
♦Borehole and well water
♦Groundwater
♦Municipal tap water
♦River and surface water with enhanced pretreatment
♦Low-to-moderate-TDS brackish water
| Water Problem | Treatment Solution |
|---|---|
| Sediment and turbidity | Multimedia filtration |
| Odor and organic matter | Activated carbon filtration |
| High hardness | Softener or antiscalant dosing |
| Iron and manganese | Optional removal filter |
| Dissolved salts | Reverse osmosis membranes |
| Microorganisms | Optional UV or ozone disinfection |
A raw-water analysis is required to determine the correct pretreatment, membrane type and operating pressure.
Treatment Process
Raw Water → Feed Pump → Multimedia Filter → Activated Carbon Filter → Softener/Antiscalant Dosing → Cartridge Filter → High-Pressure Pump → RO Membrane System → Product Water Tank
All major treatment units can be installed inside the enclosure, reducing on-site assembly work. The customer normally needs to prepare a level foundation, feed-water connection, product-water storage, drainage and electricity.
Main Advantages
♦Compact integrated structure
♦Easy transportation and relocation
♦Fast on-site commissioning
♦Automatic water production and flushing
♦Protection from rain, dust and sunlight
♦Customizable for different water sources
♦Simple daily operation
♦Suitable for temporary and remote projects
Optional Configurations
♦UV sterilizer or ozone disinfection
♦Iron and manganese removal
♦Water softener
♦Online TDS and conductivity monitoring
♦PLC control and fault alarm
♦Double-pass RO for lower conductivity
♦Thermal insulation and ventilation
♦Heating or air conditioning
♦Anti-corrosion container coating
♦Solar-compatible power configuration
♦Product-water tank and distribution pump
Typical Applications
The 250 liters per hour mobile RO plant is suitable for:
→Remote village water supply
→Construction and exploration camps
→Emergency water-treatment projects
→Rural schools and clinics
→Small island facilities
→Field offices and temporary bases
→Mobile domestic water purification
→Small-scale industrial cleaning
Example Applications
Remote Village Borehole-Water Treatment
The system can treat borehole water containing sediment, hardness and dissolved salts, providing a more reliable source of purified water without constructing a permanent treatment building.
Construction-Camp Water Supply
A compact portable reverse osmosis system for construction camps can be transported with the project and connected to local water, power and drainage systems.
Emergency Water Purification
The enclosed mobile unit can be deployed to temporary service locations. Raw-water testing and suitable pretreatment remain necessary before operation.
Remote Island Water Supply
The system can treat suitable groundwater or brackish water when configured with the correct RO membranes. Seawater requires a dedicated high-pressure SWRO system and cannot use the standard configuration.
Frequently Asked Questions
What are the advantages of a containerized RO system?
It protects the equipment, reduces on-site assembly and makes transportation or relocation easier. Some foundation and utility preparation may still be required.
Can the system operate outdoors?
Yes. Rain protection, thermal insulation, ventilation, heating or cooling can be added according to the local climate.
Can the treated water be used for drinking?
The system can be designed with suitable disinfection and post-treatment. Final drinking-water compliance must be confirmed through local chemical and microbiological testing.
Can it treat brackish water?
Yes, if the feed-water salinity falls within the selected membrane and pump design. A complete water analysis is required before confirming the configuration.
Is installation complicated?
No. The main equipment is preassembled and factory-tested. On-site work normally includes positioning and connecting feed water, product water, drainage and electricity.
Information Required for a Quotation
Please provide:
- Raw-water source and water-analysis report
- TDS, hardness, turbidity, pH, iron and manganese levels
- Intended use of the treated water
- Required daily water volume and operating hours
- Local voltage and frequency
- Site temperature and installation conditions
- Delivery destination and optional configuration requirements
Zhongnuo provides customized 250L/H containerized RO water treatment systems based on the customer’s water quality, application and installation environment.
