5T/H Automatic Borehole Water Treatment System

1. Product Specifications & Capacity

2. Raw Water Treatment Performance

3. Correct Process Flow Design

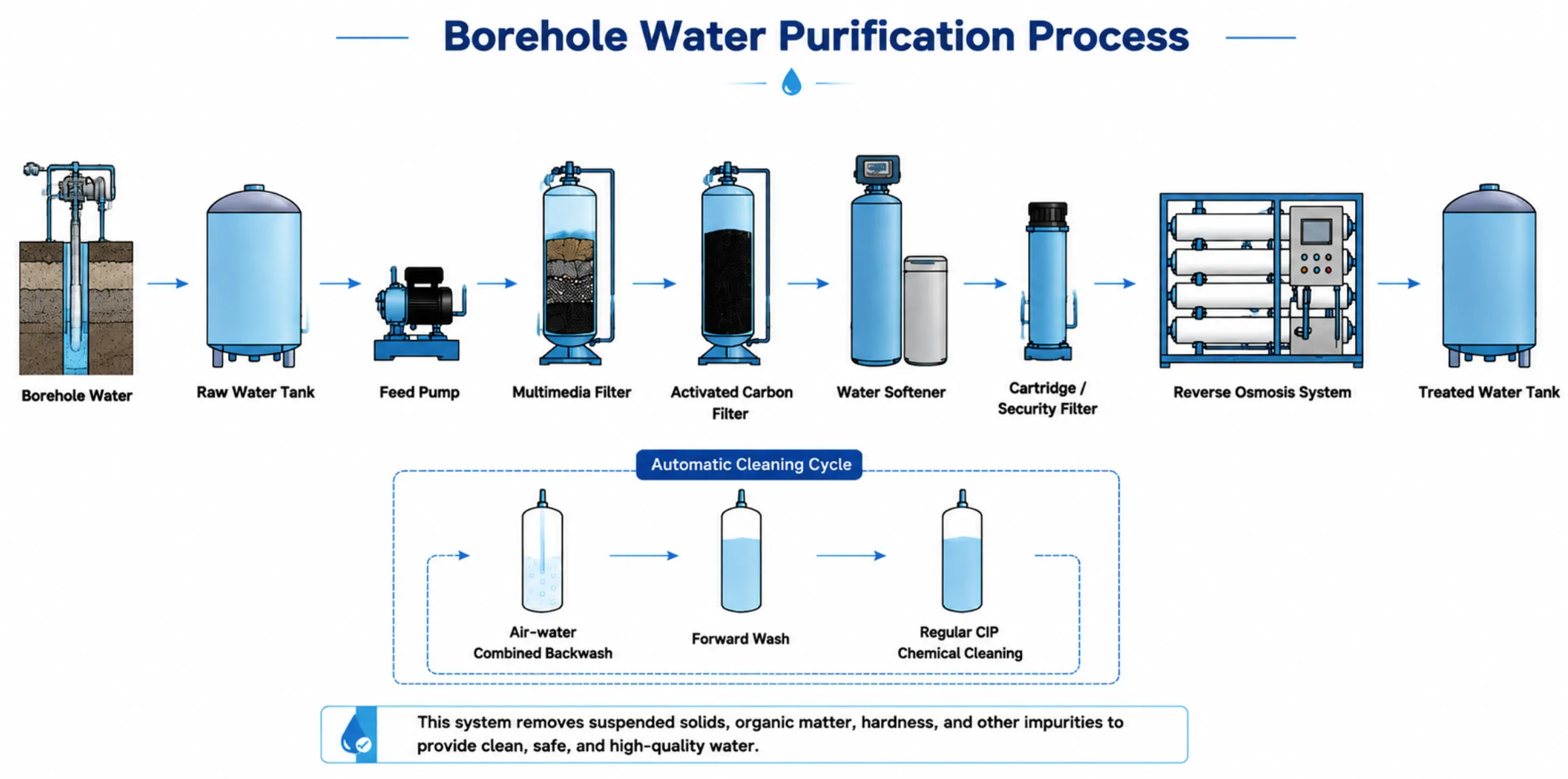

Standard Borehole Water Purification Process:

Borehole Water → Raw Water Tank → Feed Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Cartridge / Security Filter

→ reverse osmosis System→ Treated Water Tank

Process for Iron & Manganese Removal:

Borehole Water → Aeration Tank / Dosing System → Feed Pump → Iron & Manganese Removal Filter → Multimedia Filter → Activated Carbon Filter → Cartridge Filter → reverse osmosis System→UV Sterilizer → Treated Water Tank

Note: The activated carbon filter is explicitly placed BEFORE the water softener to protect the softening resin from organic fouling and chlorine degradation.

4. Technical Parameters & Optional Upgrades

• Operating Pressure: 0.2–0.4 MPa

• Power Supply: 220V/380V, 50/60Hz (Customizable)

• Equipment Material: FRP vessels, Carbon Steel, or SS304 / SS316 Stainless Steel

• Service Life: 8–10 years with standard maintenance

• Optional Configurations: Ultrafiltration (UF) system, Reverse Osmosis (RO) system for high TDS groundwater, PLC automatic backwashing control, and outdoor rainproof enclosure.

5. Applications

This 5m³/h industrial well water treatment equipment is ideal for:

• Factory industrial process water and cooling tower feed

• Agricultural farm irrigation and livestock drinking water

• Rural community water supply and domestic groundwater treatment

• Commercial buildings, hotels, and construction sites

6. Frequently Asked Questions (FAQ)

Q1: Can this 5T/H borehole water system operate 24/7 automatically?

Yes. Built with automatic multi-port control valves or PLC controls, the system supports 24-hour unattended continuous operation with automated backwashing cycle.

Q2: Can the system produce direct drinking water from well water?

Standard filtration delivers high-quality utility/industrial water. For direct drinking water, an optional RO system (Reverse Osmosis) and UV sterilizer must be integrated.

7. Get a Custom Quotation

To receive a customized design and factory-direct price for your 5T/H borehole water purification solution, please provide:

1. Raw water quality test report (TDS, Iron, Manganese, Hardness, Turbidity)

2. Intended water use (Industrial, Domestic, Irrigation, Drinking)

3. On-site power supply voltage and frequency
