4 TPH Reverse Osmosis Water Treatment System for a Food Processing Plant in Malaysia | Industrial RO Water Treatment Case Study

 · Project Overview



Zhongnuo Water Treatment designed and supplied a 4 m³/h Reverse Osmosis (RO) Water Treatment System for a food processing plant in Malaysia. Using municipal water as the feed source, the system provides stable, hygienic, and high-quality purified water for food production, ingredient preparation, equipment cleaning, and utility applications. The automated RO system helps improve product quality, reduce operating costs, and ensure continuous production.



 · Client Background



Item Details
Industry Food Processing
Country Malaysia
Feed Water Municipal Water
Capacity 4 m³/h
Product Reverse Osmosis (RO) Water Treatment System
Application Food Production, Ingredient Preparation, Equipment Cleaning, Utility Water



 · Project Challenges



• Maintaining consistent water quality for food manufacturing.
• Removing chlorine, hardness, suspended solids and dissolved salts.
• Ensuring 24/7 continuous water supply.
• Meeting food industry hygiene requirements.
• Reducing operating and maintenance costs.



 · Water Treatment Process Flow



Municipal Water  ->  Raw Water Tank  ->  Raw Water Pump  ->  Multi-media Filter  ->  Activated Carbon Filter  ->  Water Softener  ->  Brine Tank  ->  5 μm Cartridge Filter  ->  High-pressure Pump  ->  Reverse Osmosis (RO) System  ->  Pure Water Tank  ->  UV Sterilizer  ->  Water Supply System  ->  Food Production Water Points

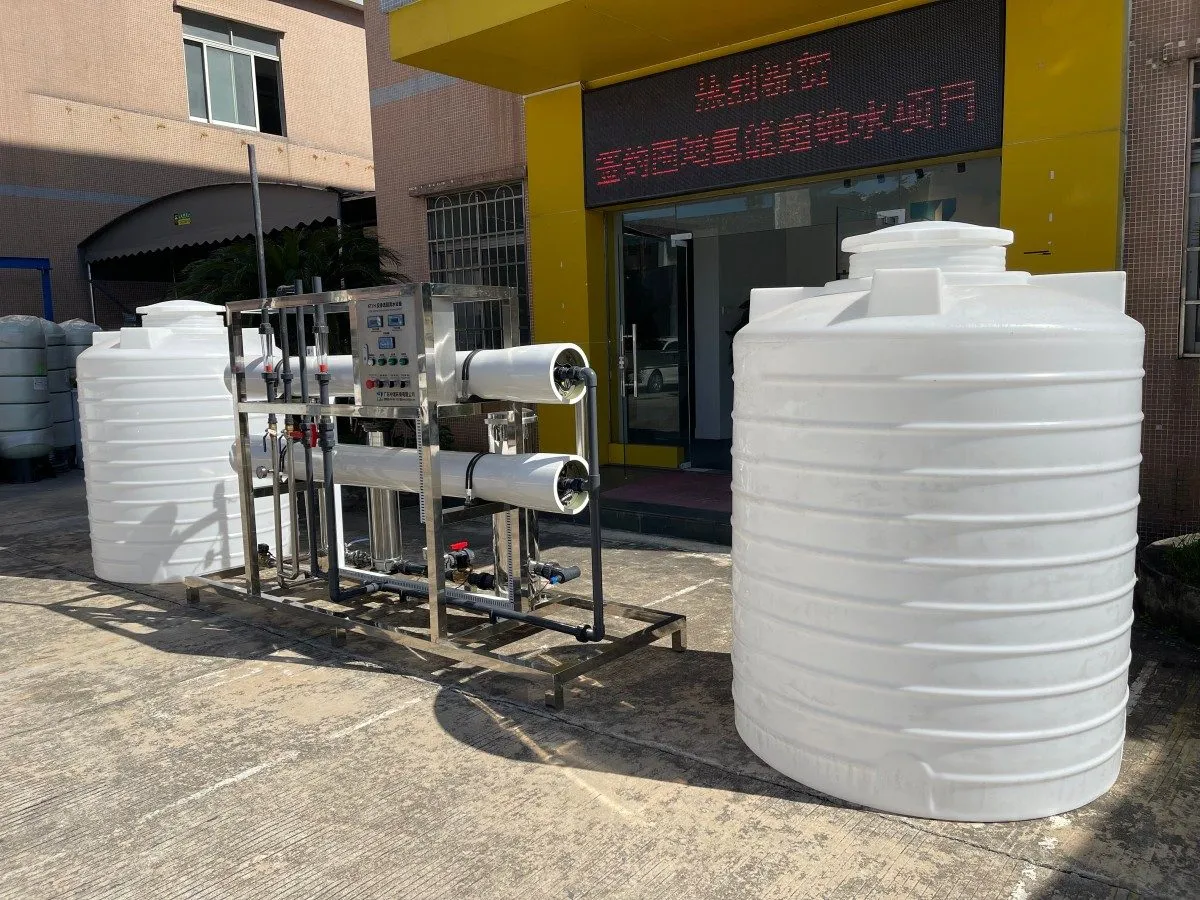

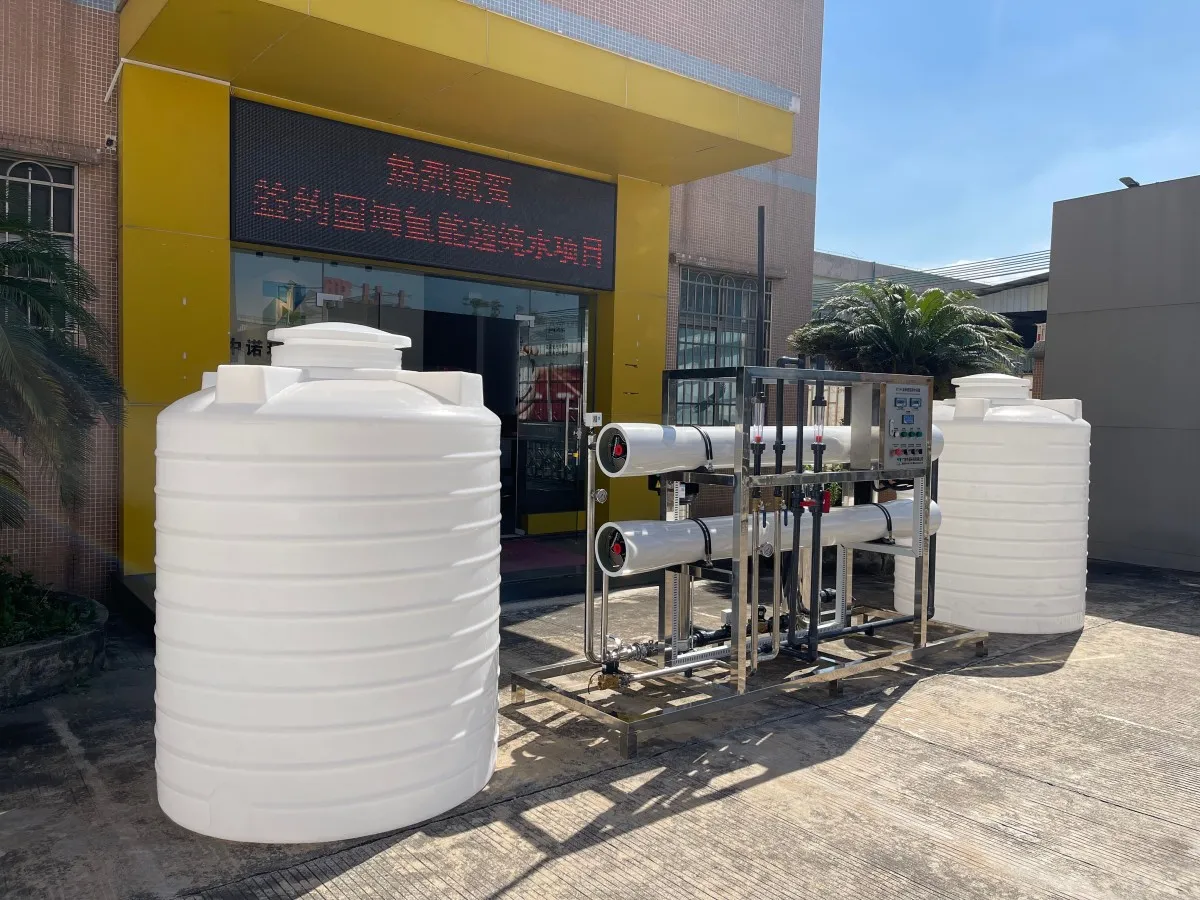

 · 4 TPH RO Water Treatment System Introduction



The system integrates pretreatment, reverse osmosis, UV sterilization, and PLC automatic control into a compact skid-mounted design. It delivers stable purified water while minimizing operating costs and maintenance, making it ideal for food processing facilities.



 · Core Equipment Configuration



• Raw Water Tank

• Raw Water Pump

• Multi-media Filter

• Activated Carbon Filter

• Water Softener

• Brine Tank

• 5 μm Cartridge Filter

• High-pressure Pump

• RO Membrane System

• Pure Water Tank

• UV Sterilizer

• PLC Control Cabinet



 · Technical Advantages



• Stable 4 m³/h purified water production





• RO salt rejection up to 99%





• Effective removal of chlorine, hardness, suspended solids and dissolved salts





• PLC automatic operation with online monitoring
• UV disinfection for hygienic water quality
• Energy-efficient and low-maintenance design



 ·Project Results



✓ Stable 4 m³/h purified water supply
✓ Continuous 24/7 operation
✓ Improved food product quality
✓ Reduced equipment scaling and maintenance
✓ Reliable hygienic water for production
✓ Lower operating costs



 · Technical Specifications



Parameter Specification
Capacity 4 m³/h
Feed Water Municipal Water
Technology Reverse Osmosis (RO)
Product Water Purified Water
Salt Rejection ≥99%
Control PLC Automatic
Disinfection UV Sterilizer
Operation Fully Automatic



 · Frequently Asked Questions (FAQ)



Q: Why use RO in food processing?
A: RO removes dissolved salts and impurities to provide consistent, high-quality process water.

Q: Can the system be used for beverage production?
A: Yes, it is suitable for food and beverage applications with appropriate design.

Q: Why is UV sterilization included?
A: UV helps control microorganisms and improves microbiological safety.

Q: Is the system fully automatic?
A: Yes, PLC controls the complete operation and monitoring process.

Q: Can the capacity be customized?
A: Yes, systems from 0.5 to over 500 m³/h are available.

Q: How often should RO membranes be cleaned?
A: Cleaning frequency depends on feed water quality and operating conditions.

Q: What is the membrane service life?
A: Typically 3–5 years with proper maintenance.

Q: Does Zhongnuo provide installation support?
A: Yes, including commissioning, operator training, and after-sales service.



 · Why Zhongnuo Water Treatment



• 23+ Years of Experience
• 20+ Professional Engineers
• Customized Water Treatment Solutions
• RO, UF, EDI, BWRO & SWRO Expertise
• ISO-Certified Manufacturing
• Complete EPC Service
• Global Projects in 100+ Countries
• 24/7 Technical Support
• OEM & ODM Available
