80 T/H Ultrafiltration (UF) System for Tan Quang Minh Manufacture & Trading Co., Ltd. | Vietnam
· Project Overview |
Client: Tan Quang Minh Manufacture & Trading Co., Ltd.
Location: Vietnam
Industry: Wood Processing & Manufacturing
Project Type: Industrial Ultrafiltration Water Treatment System
Capacity: 80 m³/h
Application: Process Water Pretreatment
Equipment Supplied: Zhongnuo Water Treatment UF System
Completion Date: 2024
· About the Customer |
Tan Quang Minh Manufacture & Trading Co., Ltd. is a Vietnamese manufacturing enterprise specializing in wood processing and wood product production. The company supplies high-quality wood products to both domestic and international markets.
As production capacity continued to expand, the customer required a more reliable water treatment solution to improve production water quality, protect downstream equipment, and reduce operating costs.
To meet these requirements, Zhongnuo Water Treatment designed and supplied a customized 80 m³/h Ultrafiltration (UF) System, providing stable and high-quality process water for daily production.
· Project Challenges |
Before installing the UF system, the customer faced several water treatment issues.
◎ High Turbidity and Suspended Solids
The raw water contained suspended solids, colloids, and fine particles, causing unstable water quality and affecting production.
◎ Frequent Equipment Fouling
Poor pretreatment increased the fouling risk of downstream equipment, resulting in higher maintenance frequency and reduced operating efficiency.
◎ Increasing Operating Costs
Traditional filtration methods required frequent filter replacement and chemical cleaning, leading to increased operating expenses.
◎ Stable Water Quality Requirement
The customer required continuous production with stable water quality throughout the year, even during seasonal fluctuations.
· Water Treatment Process Flow |
Raw Water → Raw Water Pump → Multi-media Filter → Activated Carbon Filter → 80 T/H Ultrafiltration (UF) System → UF Water Tank → Production Water Supply
If paired with a reverse osmosis (RO) system, the UF system also serves as an efficient pretreatment stage, significantly extending membrane service life.
· Equipment Introduction |

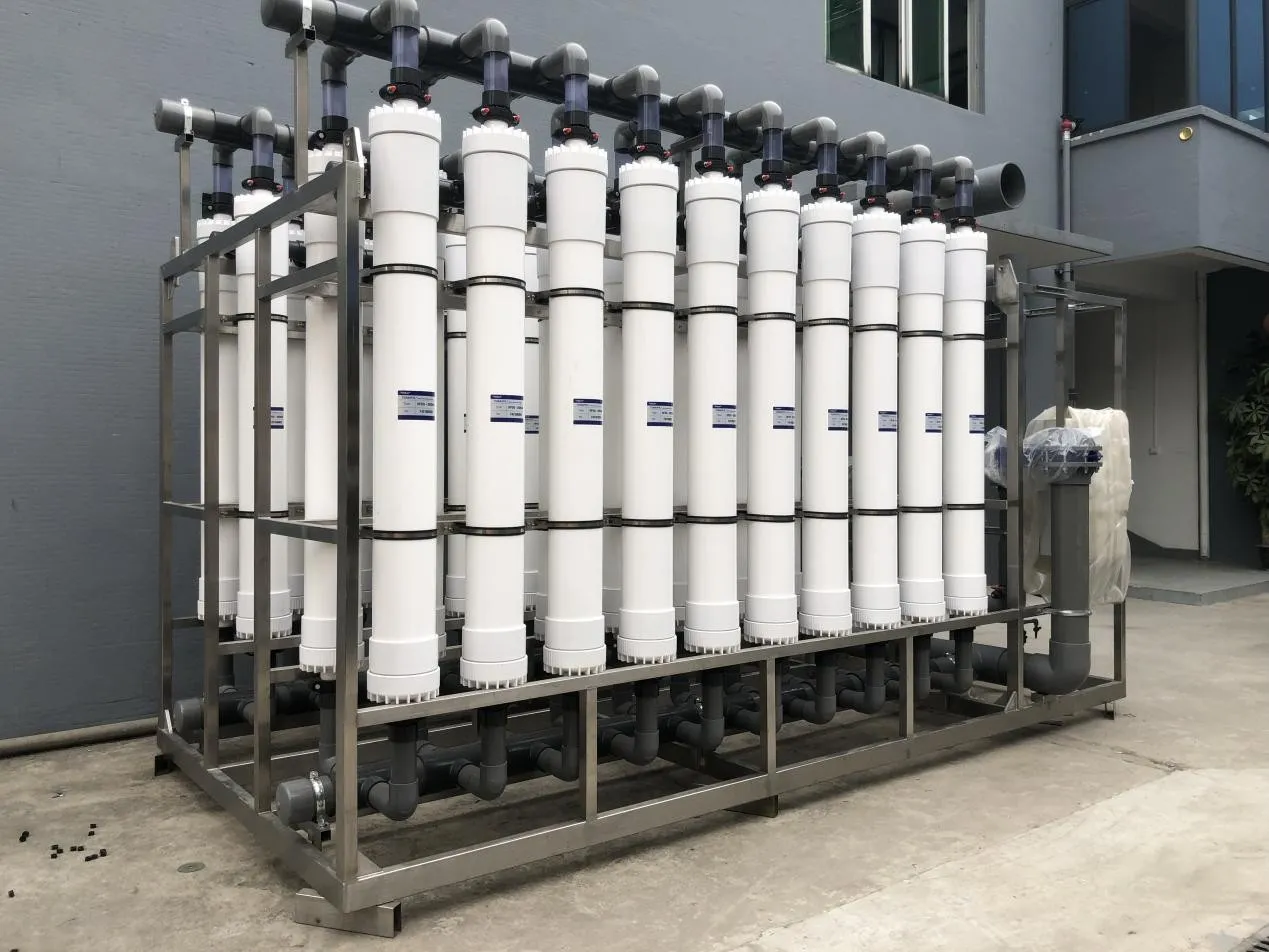

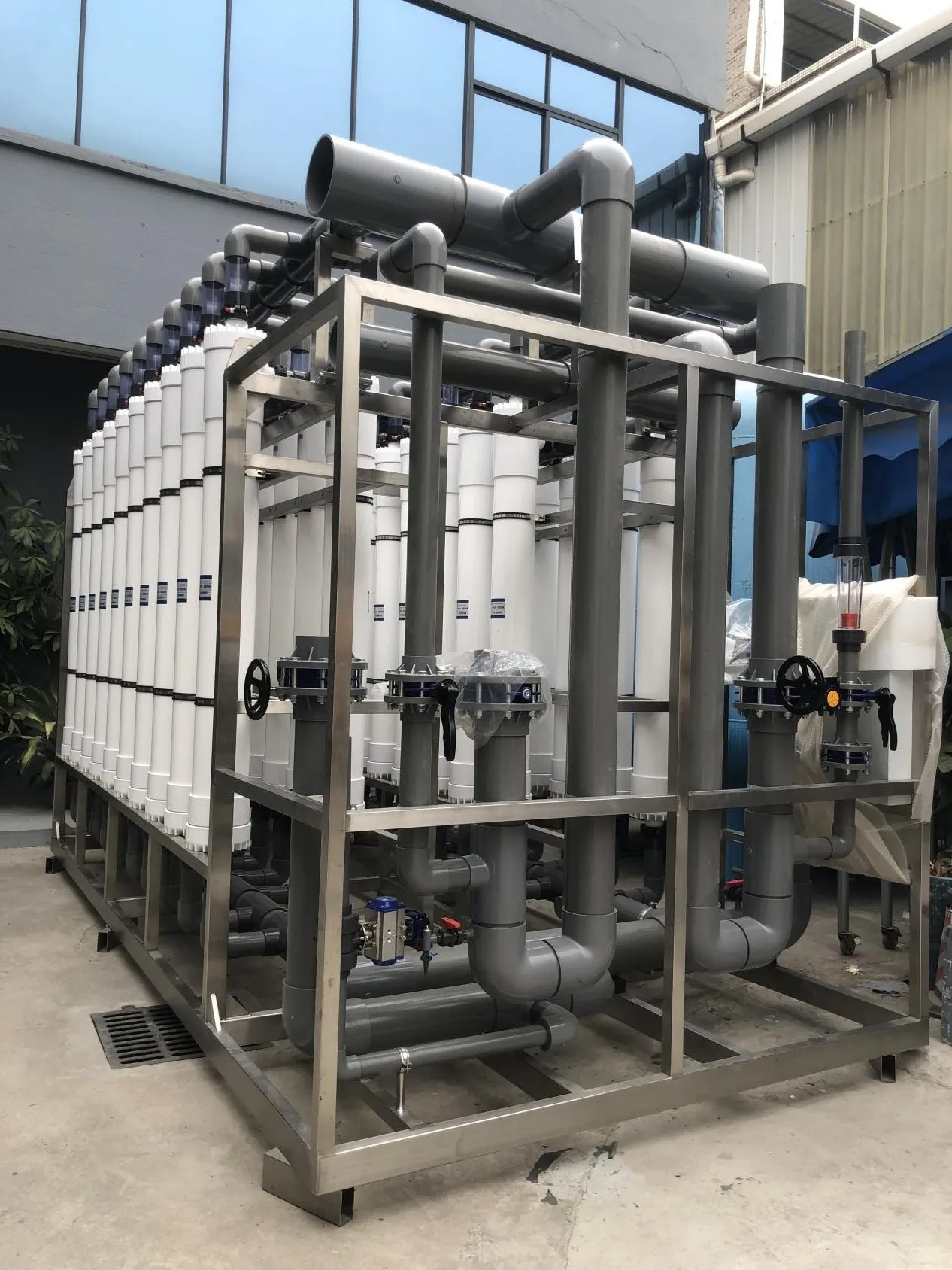

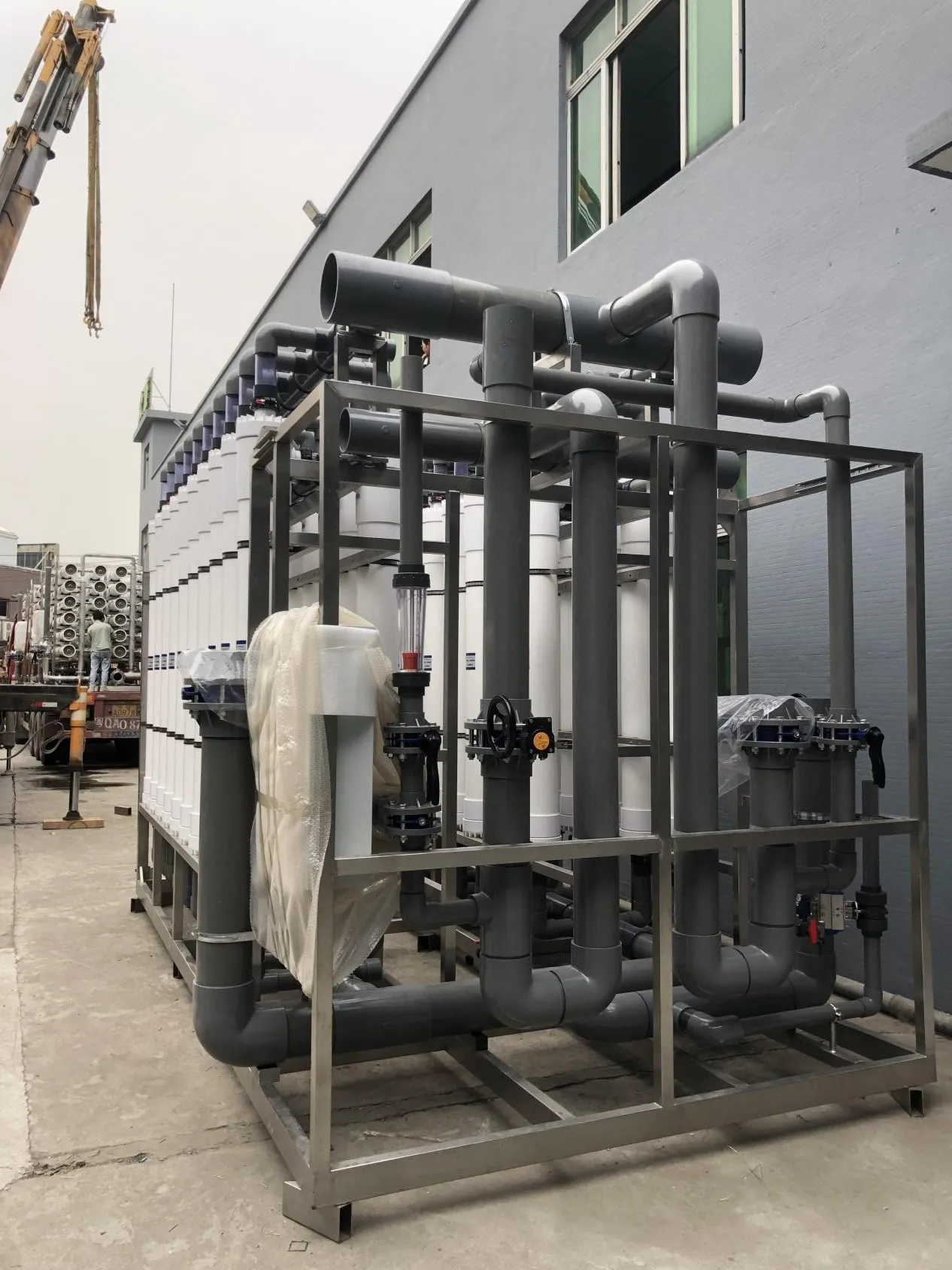

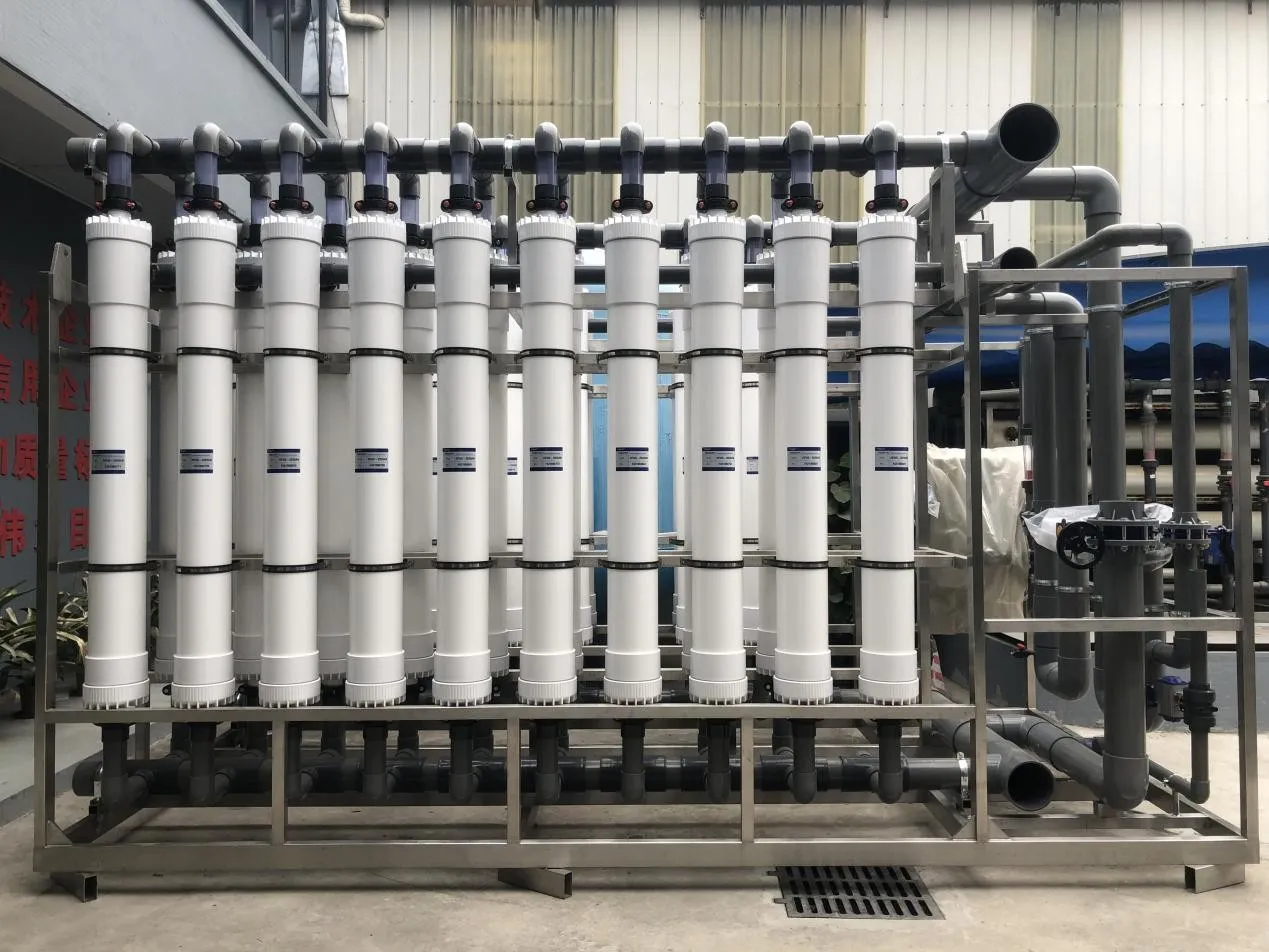

80 T/H Industrial Ultrafiltration System
· Technical Specifications |
| Item | Specification |
| Capacity | 80 m³/h |
| Membrane Type | Hollow Fiber UF Membrane |
| Membrane Material | PVDF |
| Filtration Accuracy | 0.01 μm |
| Operating Mode | Fully Automatic |
| Cleaning Method | Automatic Backwash + Chemical Cleaning (CIP) |
| Frame Material | SUS304 Stainless Steel |
| Control System | PLC Automatic Control |
· System Features |
· High removal efficiency for suspended solids, bacteria and colloids
· Stable water quality
· Fully automatic operation
· Low energy consumption
· Low maintenance cost
· Compact skid-mounted design
· Long membrane service life
· Easy installation and operation
·Project Results |
After the system was commissioned, the customer achieved significant improvements.
◎ Stable Water Quality
The UF system effectively removed suspended solids, colloids, and microorganisms, providing stable water quality for continuous production.
◎ Improved Production Efficiency
Reliable pretreatment reduced equipment fouling and minimized production interruptions.
◎ Reduced Operating Costs
Automatic operation and efficient membrane cleaning lowered labor costs and maintenance frequency.
◎ Extended Equipment Life
High-quality pretreatment protected downstream pipelines and production equipment, reducing long-term maintenance costs.
◎ High Customer Satisfaction
The customer highly recognized Zhongnuo Water Treatment for its professional engineering design, reliable equipment quality, and responsive after-sales service.
· Why Choose Zhongnuo Water Treatment? |
With over 20 years of experience in industrial water treatment, Zhongnuo Water Treatment provides customized solutions for customers worldwide.
Our product range includes:
· Ultrafiltration (UF) Systems
· Reverse Osmosis (RO) Systems
· EDI Ultra Pure Water Systems
· Seawater Desalination Systems
· Industrial Wastewater Reuse Systems
· Containerized Water Treatment Plants
Every system is designed according to the customer's raw water quality, production requirements, and budget to ensure maximum performance and long-term reliability.
· Looking for an Industrial UF System? |
Whether you need 5 m³/h or 500 m³/h industrial water treatment equipment, Zhongnuo Water Treatment can provide customized solutions tailored to your application.
Contact us today to receive a professional water treatment proposal and quotation.
