1m³/h Double-Pass RO EDI System for Pharmaceutical Plant
Pharmaceutical Water Project · Pakistan
1m³/h Double-Pass RO EDI System for Pharmaceutical Plant
A hygienic purified-water solution combining hardness removal, double-pass reverse osmosis, continuous EDI polishing, UV treatment and SS316L storage and circulation.
Project Overview
Lahore Pharmaceutical PlantA pharmaceutical manufacturer in Lahore required a reliable purified-water system to replace conventional ion-exchange equipment.
The available groundwater contained high hardness and dissolved salts. Frequent chemical regeneration increased operating work, while conductivity could not remain stable during continuous production.
Zhongnuo supplied a 1m³/h double-pass RO EDI system with automatic softening, UV treatment and a hygienic SS316L storage and distribution system.
| Item | Project Information |
|---|---|
| Location | Lahore, Pakistan |
| Industry | Pharmaceutical and biotechnology |
| Raw water | High-hardness groundwater |
| Capacity | 1m³/h (1,000 L/h) |
| Main process | Softening + double-pass RO + EDI |
| Post-treatment | UV + final filtration |
| Storage/distribution | SS316L tank and circulation loop |
| Control | Automatic PLC system |
| Water-quality target | Customized to application and validation needs |
Final system performance depends on groundwater quality, operating conditions and approved product-water specifications.
View related EDI ultrapure water equipment.
Project Equipment Gallery
Installed System & ComponentsReal equipment photographs showing the integrated RO+EDI skid, hygienic stainless-steel pipework and key treatment components used in the purified-water system.
Customer Challenges
Water Quality & ComplianceHigh Dissolved-Salt Load
Groundwater required multi-stage desalination before EDI polishing.
Chemical Regeneration
The existing ion-exchange system required frequent acid and alkali handling.
Unstable Conductivity
Water quality fluctuated during continuous pharmaceutical production.
Secondary Contamination
Storage and distribution required hygienic materials and continuous circulation.
Commissioning & Training
The customer required system testing, documentation and operator guidance.
Customized RO EDI Solution
Hygienic Purified Water DesignMultimedia and activated-carbon filters reduce suspended matter, organic impurities and oxidants. Automatic softening lowers hardness before reverse osmosis.
Double-pass RO removes most dissolved salts and produces suitable low-conductivity feedwater for the EDI module. EDI then removes residual ions continuously without routine acid or alkali regeneration.
UV treatment and final filtration are installed before the SS316L tank. Continuous circulation through the hygienic distribution loop helps reduce stagnation and contamination risk.
Important: The upstream softener still requires periodic salt regeneration. Its regeneration frequency depends on raw-water hardness, resin capacity and daily consumption.
Multimedia FiltrationReduces suspended solids and turbidity.
Activated CarbonReduces organics, odor and membrane-damaging oxidants.
Automatic SoftenerControls hardness and protects the RO membranes.
Double-Pass ROProvides low-conductivity EDI feedwater.
Continuous EDIPolishes residual ions without routine chemical regeneration.
SS316L CirculationSupports hygienic storage and continuous distribution.
Treatment Process
Softening + RO + EDIGroundwater
Multimedia Filter
Activated Carbon
Water Softener
5μm Filter
First-Pass RO
Intermediate Tank
Second-Pass RO
EDI Module
UV Treatment
Final Filter
SS316L Tank & Loop
The final configuration is confirmed using the groundwater analysis, intended pharmaceutical application, target water-quality specification and validation requirements.
Main System Configuration
Core EquipmentAutomatic Media FiltersMultimedia and activated-carbon pretreatment.
Automatic Water SoftenerHardness control with brine regeneration.
5μm Security FilterFine-particle protection before RO.
Double-Pass ROIndustrial desalination before EDI polishing.
Continuous EDI ModuleStable residual-ion removal.
UV & Final FiltrationPost-treatment before hygienic storage.
SS316L TankHygienic purified-water storage.
SS316L Distribution LoopContinuous circulation to points of use.
PLC Control & AlarmsAutomatic operation and system protection.
Online MonitoringFlow, pressure and conductivity instruments.
Learn more about the upstream reverse osmosis system used to protect EDI operation.
Project Results
Operational ImprovementsUp to 1m³/h OutputStable purified-water supply under specified operating conditions.
Lower Hardness and SalinityMulti-stage treatment reduces scaling-forming minerals and dissolved salts.
Stable EDI FeedwaterDouble-pass RO provides controlled low-conductivity inlet water.
Reduced Acid/Alkali UseEDI avoids routine chemical regeneration required by conventional deionization.
Lower RO Scaling RiskAutomatic softening supports longer membrane cleaning intervals.
Hygienic Storage & CirculationSS316L materials and continuous flow reduce stagnation risk.
Automatic OperationPLC control reduces routine manual supervision.
Technical SupportCommissioning, operator training and project documentation.
Pharmaceutical Water Quality Note
Application-Specific Compliancei
Equipment configuration alone does not establish pharmacopoeial compliance.
Final conductivity, microbial limits, sanitization procedures, sampling plan and validation documents must be defined according to the intended application and applicable regulations. Acceptance should be based on approved specifications, commissioning results and laboratory testing.
Factory TestingEquipment inspection and functional checks before shipment.
CommissioningOperating parameters adjusted to the approved project design.
Operator TrainingDaily operation, monitoring and maintenance guidance.
Documentation SupportTechnical documents according to agreed project scope.
Request a Customized Solution
Quotation InformationGet a Pharmaceutical Water Proposal

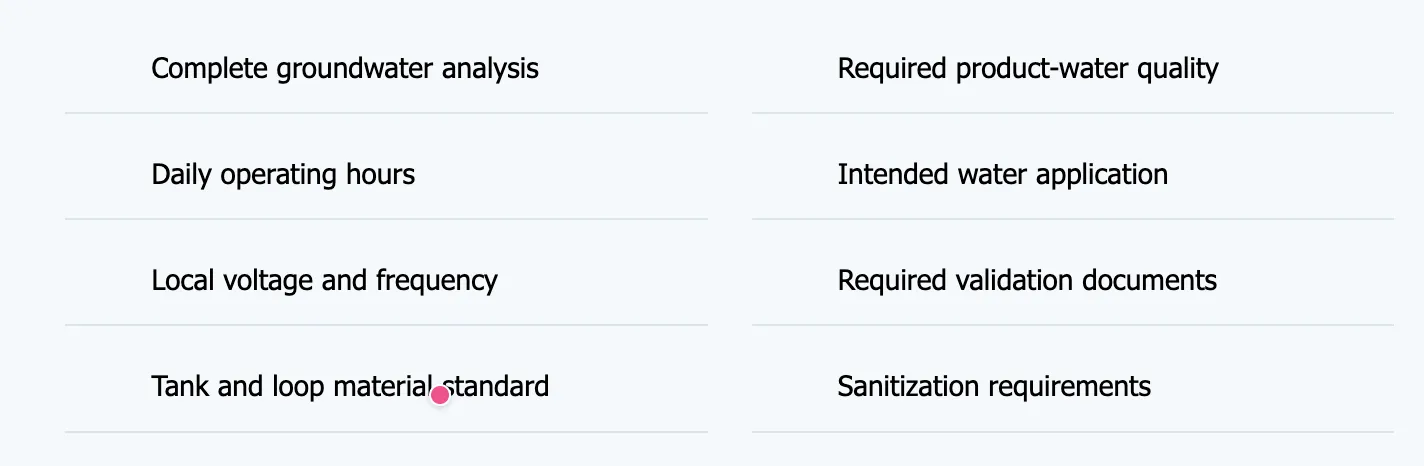

Provide the project data below so our engineers can confirm pretreatment, RO projection, EDI sizing, sanitary materials and distribution design.
Planning a Pharmaceutical RO + EDI Project?
Send your water report and process requirements for a customized technical proposal and quotation.
