Customized reverse osmosis solution for stable irrigation water supply from brackish groundwater

Reliable irrigation water is one of the most important foundations for agricultural productivity, especially in regions where groundwater is the main available source. However, when groundwater contains elevated salinity, hardness, iron, manganese, and suspended impurities, it can reduce crop performance, damage irrigation equipment, and accelerate scaling in pipelines and emitters.

To improve irrigation reliability and support agricultural operations, an agricultural company in Ethiopia selected Zhongnuo Water Treatment to design and manufacture a 5 m3/h brackish water desalination system. The solution was developed to turn brackish groundwater into stable irrigation water, helping the client protect irrigation infrastructure, improve water quality consistency, and support healthier crop development.

As the farm expanded its cultivated area and irrigation demand increased, the client needed a more dependable water treatment system. The main project challenges were as follows:

◎ Brackish groundwater quality created risks for crops and irrigation lines

The available groundwater had elevated salinity and mineral content. Without proper treatment, the water could lead to soil salinization, emitter blockage, scaling inside pipelines, and unstable irrigation performance.

◎ Irrigation demand required steady treated water output

The agricultural site depended on regular irrigation cycles to maintain crop health. The client required a system capable of producing stable treated water at 5 m3/h so irrigation plans could proceed without interruption.

◎ Raw water contaminants needed multi-stage pretreatment

In addition to salinity, the groundwater contained suspended solids and dissolved minerals that could foul membranes and reduce overall system efficiency. This required a carefully arranged pretreatment process before the reverse osmosis stage.

◎ Operating cost and maintenance simplicity mattered

For agricultural projects, practical operation and manageable maintenance costs are essential. The client needed a system that would be straightforward to operate while still delivering reliable irrigation water quality.

Brackish Groundwater  ->  Raw Water Tank  ->  Raw Water Pump  ->  Multi-media Filter  ->  Manganese Sand Filter  ->  Softening Water Filter  ->  Salt Tank  ->  Security Filter  ->  High Pressure Pump  ->  RO Reverse Osmosis System  ->  Pure Water Tank  ->  Water Supply System  ->  Irrigation Water Points

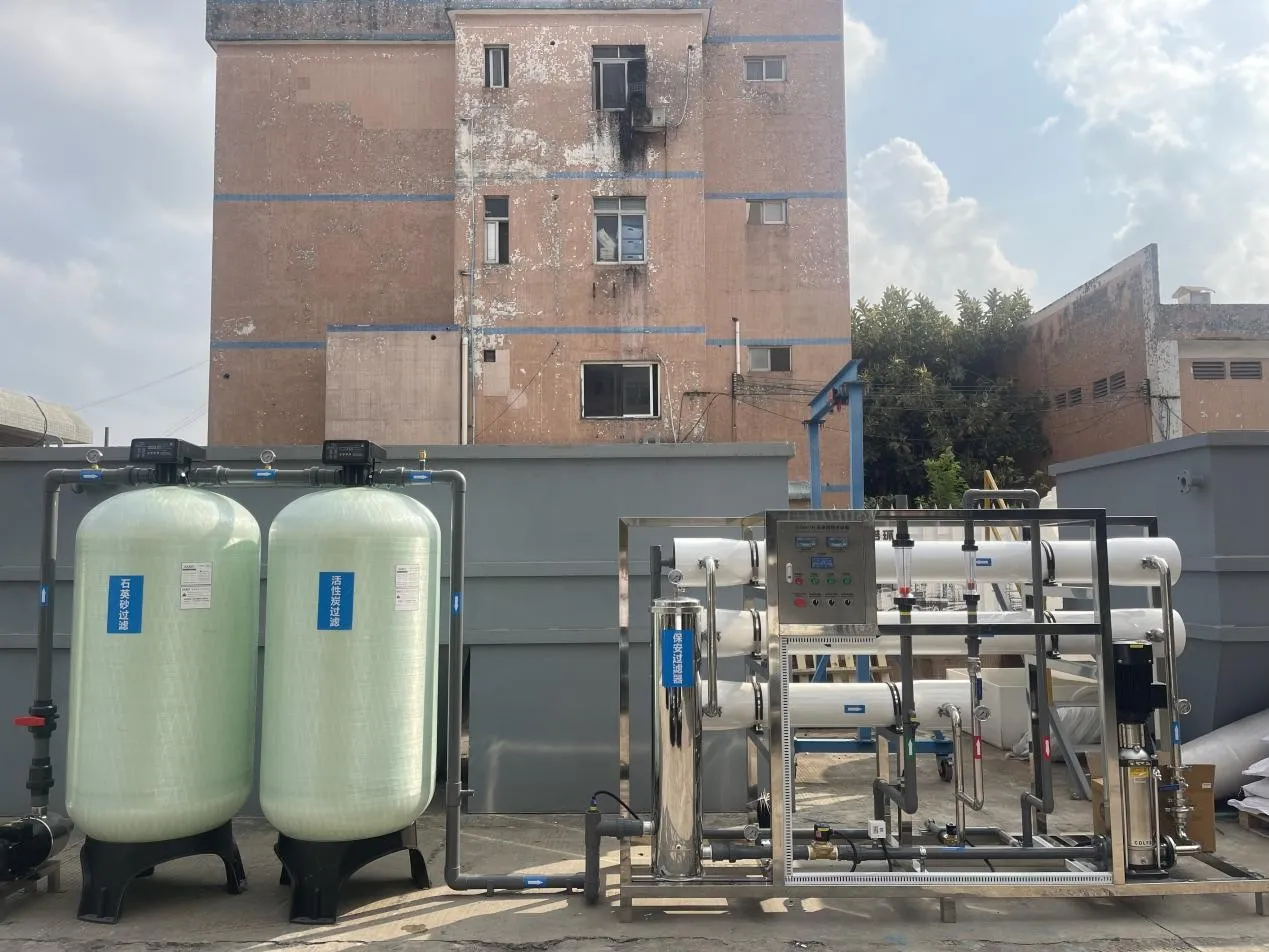

This 5 m3/h brackish water desalination system was designed specifically for agricultural irrigation applications. It combines pretreatment, brackish water reverse osmosis, storage, and distribution into a practical treatment line that can operate continuously to support irrigation needs.

Pretreatment for raw water stability

The process begins with the Raw Water Tank and Raw Water Pump, followed by a Multi-media Filter to reduce suspended solids. A Manganese Sand Filter helps address iron and manganese related impurities, while the Softening Water Filter and Salt Tank support hardness reduction and regeneration, protecting downstream components from scaling.

Protection before membrane desalination

Before entering the membrane stage, water passes through the Security Filter to capture fine particles. This improves feed water condition for the High Pressure Pump and the RO Reverse Osmosis System, helping extend membrane service life and maintain more stable desalination performance.

Stable product water for irrigation use

After desalination, the treated water enters the Pure Water Tank and then flows through the Water Supply System to the Irrigation Water Points. This arrangement provides a reliable treated water buffer and helps ensure consistent supply to irrigation zones across the farm.

Designed for agricultural practicality

The overall system was configured to balance water quality, crop protection, operating simplicity, and maintainability. It is suitable for farms that depend on brackish groundwater and need a dependable source of treated irrigation water.

After installation and commissioning, the brackish water desalination system achieved the required irrigation water treatment objectives and provided a more stable operating basis for farm water management.

· Stable treated water output of 5 m3/h for irrigation use.

· Reduced salinity and mineral load in feed water supplied to irrigation lines.

· Lower risk of scaling and blockage in pipes, valves, and emitters.

· Improved consistency of irrigation water quality across farmland operations.

· More reliable water support for crop growth and seasonal irrigation planning.

· Better long-term protection for irrigation infrastructure and downstream equipment.

With the new treatment system in place, the client was better positioned to manage irrigation more efficiently and reduce the operational risks associated with untreated brackish groundwater.

With extensive experience in industrial and agricultural water treatment, Zhongnuo Water Treatment provides tailored solutions based on source water conditions, target water quality, application requirements, and site constraints. For agricultural users, our strengths include:

· Customized brackish water RO system design for irrigation applications.

· Integrated pretreatment planning for suspended solids, hardness, and mineral control.

· Practical system layouts for steady field operation and easier maintenance.

· One-stop support covering treatment process design, equipment supply, and commissioning.

1. Why is brackish water treatment important for irrigation?

Brackish water can contain salts and minerals that affect soil condition, crop health, and irrigation equipment. Treatment helps produce more suitable water for long-term agricultural use.

2. Why does this system use a manganese sand filter?

A manganese sand filter helps reduce iron and manganese-related impurities in groundwater, which can otherwise contribute to fouling, staining, and instability in the treatment process.

3. What is the role of the softening water filter and salt tank?

The softening stage reduces hardness in the raw water, while the salt tank supports regeneration. This helps limit scaling risk and protects the RO system.

4. Can the system be customized for different agricultural projects?

Yes. Zhongnuo Water Treatment can customize system capacity, pretreatment configuration, control mode, and final water quality targets based on local groundwater conditions and irrigation needs.
